YDF-60 Two heads Fully automated Spiral Paper Tube Making Machine with multi-cutters. Details:Paper tube inner diameter ：15~60mm. Paper tube wall thickness:1~5mm. Main power:2*3.7kw Mini tube cutting length:90mm.
YDF-60 Two heads Fully automated Spiral Paper Tube Making Machine with multi-cutters.
Details:Paper tube inner diameter ：15~60mm.
Paper tube wall thickness:1~5mm.
Main power:2*3.7kw
YDF-60 Two head Spiral Cardboard Paper Tube Core Making Machine with multi-cutters.

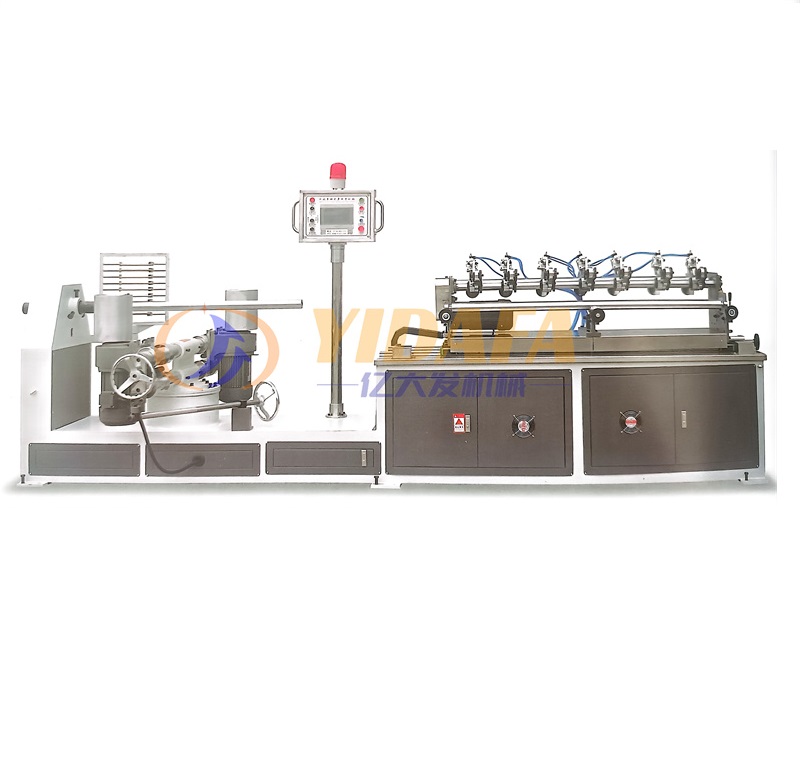

YDF-60 Model Spiral Paper Tube Making Machine
This machine adopts advanced production and processing technology, with the four main driving wheel assembly, full computer digital frequency control, automatic tracking in cutting .This paper tube making machine is suitable for manufacturing and processing paper tube or tube core in paper making, chemical fiber, texti le, plastic, medicine, food and packaging industries.
| paper layer | 2-7 layers |
| inner diameter | 15-75（mm） |
| thickness | 1-5（mm） |
| speed | 0-45（m/min） |
| Fixed length mode | Numerical control (light control) |
| Winding head | Two head |
| Cutting method | Circular knife CNC automatic |
| Gluing method | Double-sided glue |
| way to control | Frequency |
| Input voltage | 380V/220V |
| Number of operators | 1-3 |
| total weight | 1900kg |
