This is complete set of equipment for tissue paper mill.It is suitable for small scale home business.It is named tissue paper making machine that can make parent tissue paper roll from waste paper,wood pulp sheet,bamboo etc.This machine includes paper pulp machine for slurry preparation system and parent tissue paper roll forming machine.
SMALL SCALE COMPLETE TISSUE PAPER MAKING MACHINE|TISSUE PAPER MILL MACHINE
1.This is complete set of equipment for tissue paper mill.It is suitable for small scale home business.It is named tissue paper making machine that can make parent tissue paper roll from waste paper,wood pulp sheet,bamboo etc.This machine includes paper pulp machine for slurry preparation system and parent tissue paper roll forming machine.
2.Complete tissue paper making machine is specifically as follows:hydrapulper, vibrating screen, pulp refiner machine,low consistency slag cleaner machine,high consistency slag cleaner machine,pressure screen etc and parent tissue paper roll making machine.
2.1 Hydrapulper.
It is mainly used for shredding pulp board, waste books, waste cartons, etc. to remove impurities and ink. From the structural form, it can be divided into vertical hydraulic pulper and horizontal hydraulic pulper.
2.2 Pulp Refiner machine.
It consists of more than one set of fine grinding devices arranged vertically, each set of fine grinding devices includes a three-dimensional structure frame, a driving roller, a grinding iron and a power part that are parallel to the roller wall of the driving roller, and the grinding iron is equipped with a universal device and a spring The pressing device enables the grinding iron to be automatically adjusted to maintain parallel contact with the wall of the driving roller to ensure the fine grinding effect. Compared with the traditional ball mill, the fine mill consumes less energy and is easy to move. It is used for fine grinding of pulp and improves the quality of pulp. uniformity and adhesion.

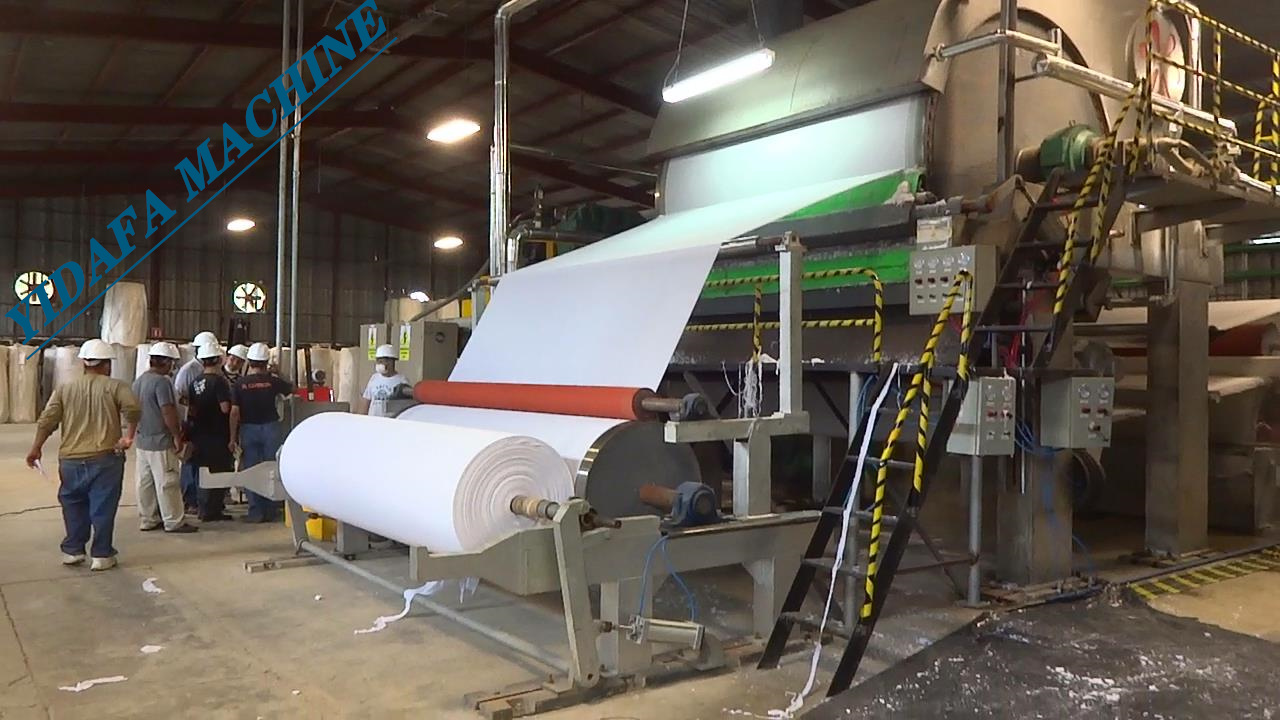

2.3 Parent tissue paper roll making machine
It is used to form pulp into wet paper in the wire section, and then make finished paper through processes such as pressing, drying, and coiling. It includes main machines such as headbox, wire section, press section, drying section, calender, reel, and transmission section, and auxiliary systems such as steam, water, vacuum, lubrication, and heat recovery.
If you have any needs , please fill out the form below and we will contact you as soon as possible.
