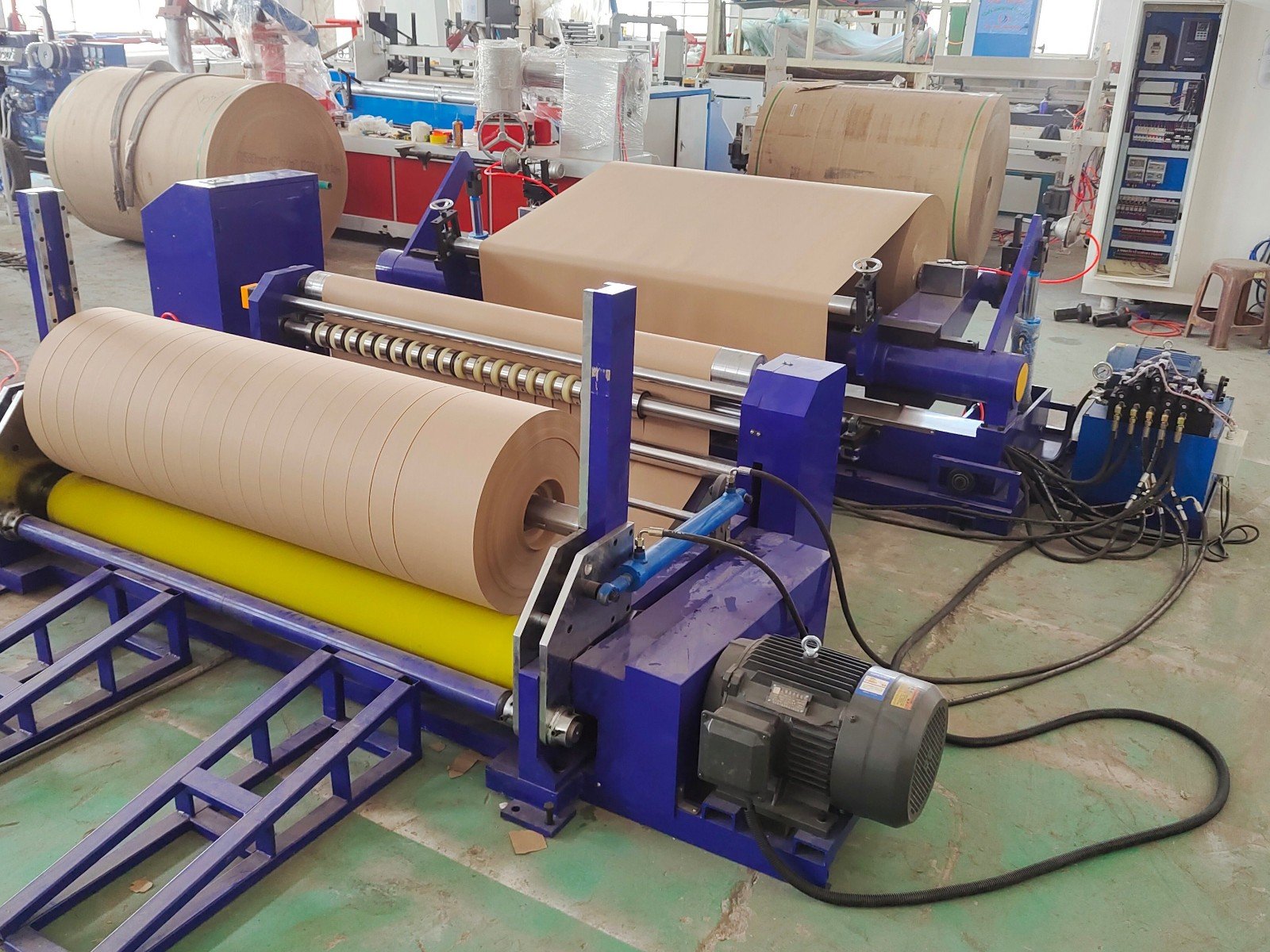

Jumbo Roll Paper Slitter Rewinder Machine
Jumbo Roll to Roll Paper Slitter Rewinder Machine
1600D Jumbo Roll Paper Slitter Rewinder Machine
1600D high-speed slitting machine Slitter parameters: Applicable raw material width: 1600mm (standard) Applicable raw material outer diameter: 1200mm (maximum) 1200mm diameter after winding (maximum) Minimum slitting width: 50mm (minimum) The maximum line speed of slitting: 350M/min Reel diameter: 76MM Host power: 7.5KW Tool post lifting motor: 0.75KW Raw material lifting motor: 0.75KW Raw material clamping motor: 1.1KW × 2 Operator: 1 Host size: 3100×3000×1360mm Electricity motor : 380V,50HZ. |
