A4 Paper Cutting Packaging Machine

This machine could make a4 size sheet from big copy paper rolls.Including automatic cutting unit and packaging machine function.

PRODUCT DETAILS

This machine could make a4 size sheet from big copy paper rolls.Including automatic cutting unit and packaging machine function.

PRODUCT DETAILS

A4 size copier paper making machine is full automatic a4 or a3 paper cutting and packaging machine.

including cutting function and packing unit.


Performance and Characteristics:

  • Adopts pneumatic automatic materials loading system with much easy operation and convenience

  • Adopts down-up recurrent cutting with orderly finished products and without water caltrop;meantime,it can be used for horizontal cutting and vertical cutting at one time

  • It adopts servo motor for controlling constant-length cutting。

  • It adopts PLC control, contact screen operation

  • It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the function of easy operation, high precision, good stability, low noise.

  • This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste

  • It has the functions of high-precision of cutting, high speed,etc . pneumatic structure combined with computer control be adopted for transmission section ,making it become much more steady operation

  • It has the function of automatic stacking which is in order . Photoelectric auto tracing subtense system


Product nameOne roll,Two rolls,Four rolls or Five rolls. Full Automatic A4 paper cutting and packaging machine
Maxi width of paper rolls1100mm
Cutting length100~500mm
Cutting Speed
1.5 reams per minute,3 reams per minute,6 reams per minute, 7.5 reams per minute.
Paper Grade

High-grade copy paper; High-grade office paper, High grade Free Wood paper etc.

Paper Weight Range

60-100g/㎡

Machine Speed

10-200times/min

Cutting Accuracy


±0.3mm

Cutting Condition

No variation of the speed, no break, cut all the paper at one time and need the eligible paper

Cutting specifications

210*297mm or a3 ,a5 size etc.

a4 size copier paper making machine

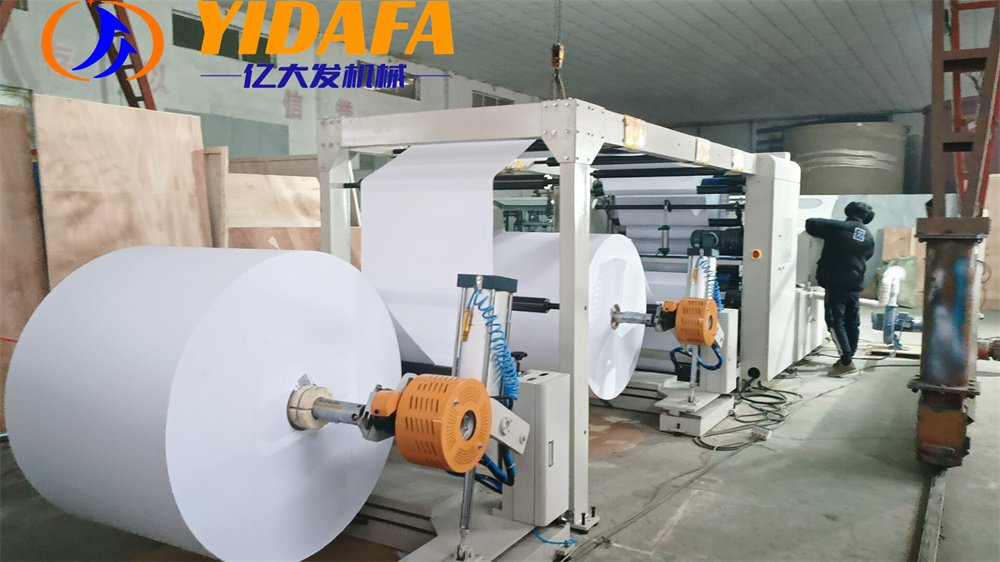

Cutting unit could cut a3,a4,a5 size sheet from big paper rolls.Then the finished paper could be widely used for writing and printing industry.

a4 size copier paper making machine


a4 size copier paper making machine


a4 size copier paper making machine

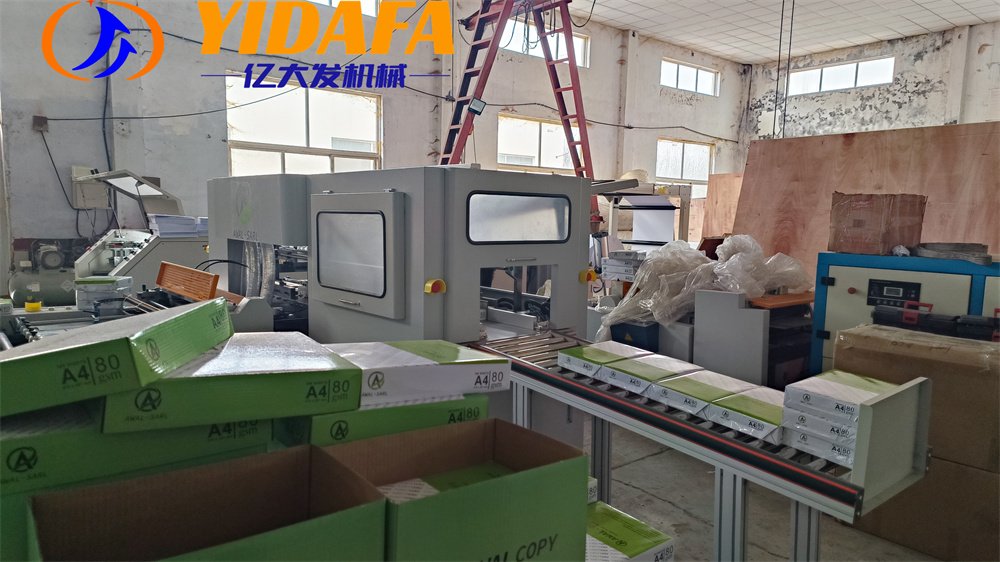

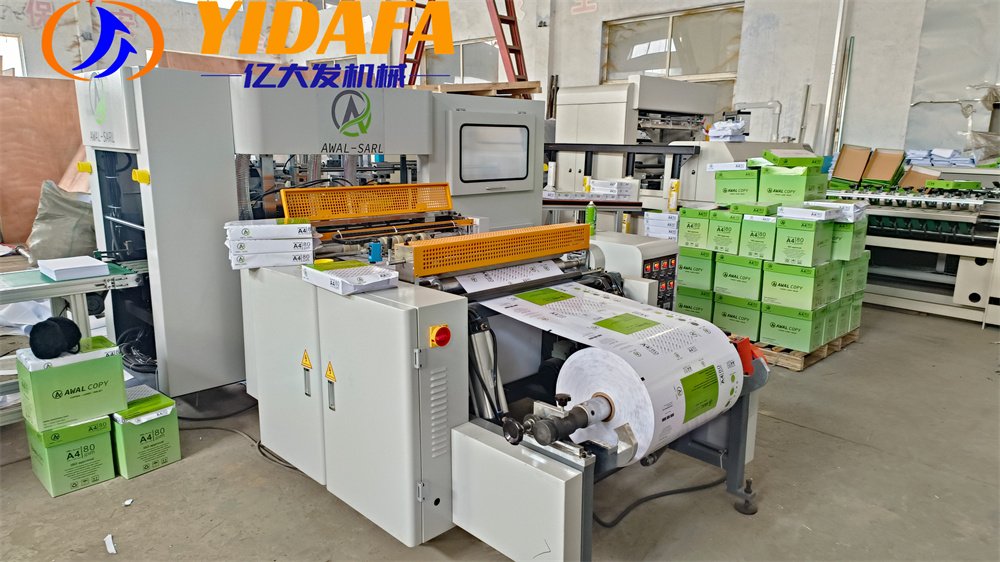

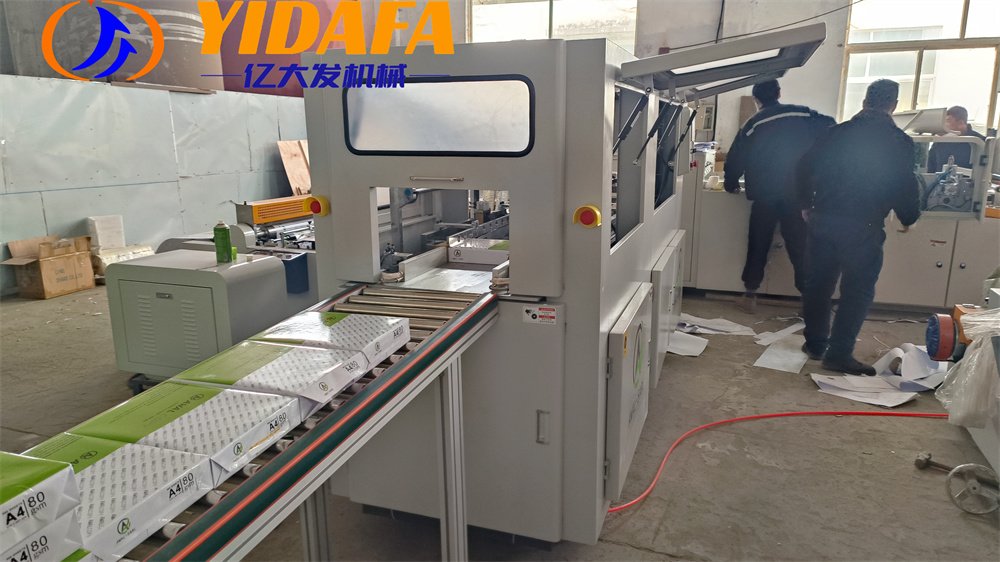

Packaging Unit could wrap a4 size paper reams automatically.It is controlled by PLC with high speed.The finished product is clean and beautiful.

a4 size copier paper making machine


a4 size copier paper making machine


a4 size copier paper making machine


a4 size copier paper making machine
