China Manufacture With Factory Price Toilet Paper Making Machine Used For Paper Industry

China Manufacture With Factory Price Toilet Paper Making Machine Used For Paper Industry

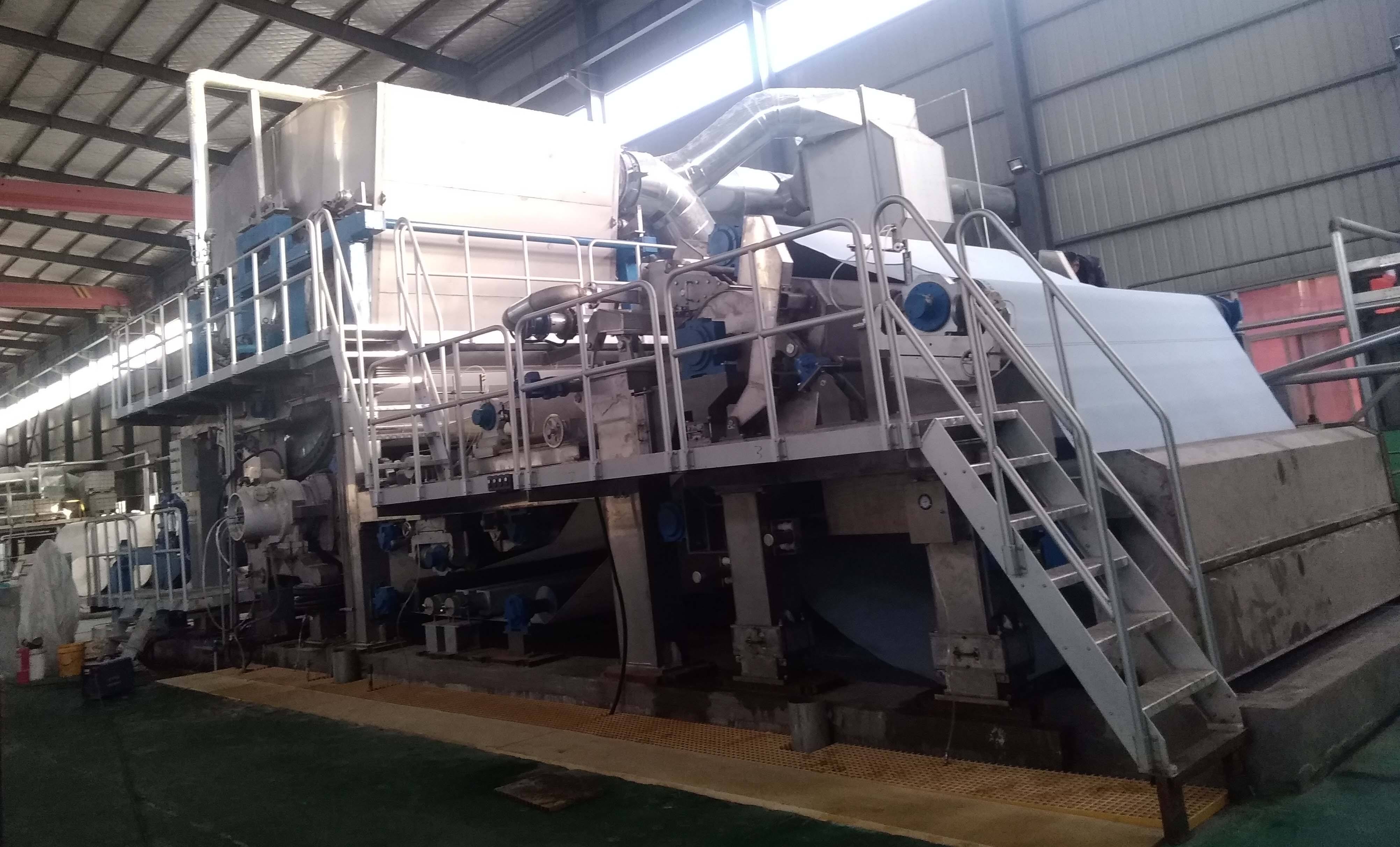

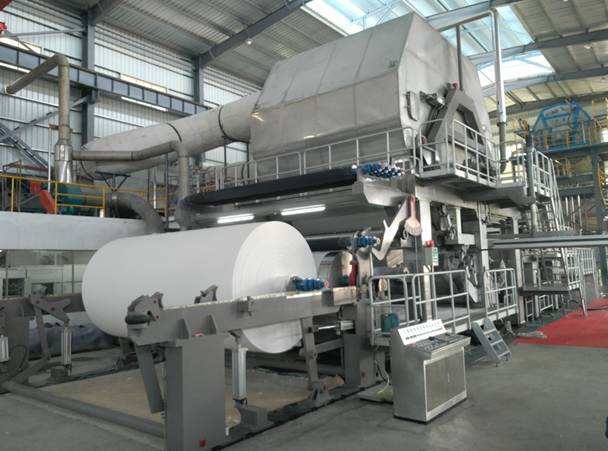

A paper machine (or paper-making machine) is an industrial machine which is used in the pulp and paper industry to create paper in large quantities at high speed. Modern paper-making machines are based on the principles of the Fourdrinier Machine, which uses a moving woven mesh to create a continuous paper web by filtering out the fibres held in a paper stock and producing a continuously moving wet mat of fibre. This is dried in the machine to produce a strong paper web.

Paper machines usually have at least five distinct operational sections:

• Forming section, commonly called the wet end, is a continuous rotating wire mesh which removes water from the paper by sucking it out of suspension via vacuum.

• Press section, where the wet fibre web passes between large rolls loaded under high pressure to squeeze out as much water as possible.

• Drying section, where the pressed sheet passes partly around, in a serpentine manner, a series of steam heated drying cylinders. Drying removes the water content down to a level of about 6%, where it will remain at typical indoor atmospheric conditions. Infra-red driers are also used to supplement cylinder drying where required.

• Size Press section, where the semi-dried paper is applied with a thin layer of starch and/ or other chemicals to improve several paper properties reduce dusting and air permeability, increase stiffness, bursting strength and short span compression

• Calender section, where the dried paper is smoothened under high loading and pressure. Only one nip (where the sheet is pressed between two rolls) is necessary in order to hold the sheet, which shrinks through the drying section and is held in tension between the press section (or breaker stack if used) and the calender. Extra nips give more smoothing, but at some expense to paper strength.

• Reel section, where paper coming out of the machine is wound onto individual spools for further processing.

There can also be a coating section to modify the surface characteristics with coatings such as china clay.
